When engineering a modern secondary packaging line, one of the most pivotal technical choices packaging engineers face is selecting between a top-load case packer and a side-load case packer. Both machine topologies automate the insertion of primary packaged containers—such as bottles, pouches, jars, cans, and cartons—into master corrugated RSC shipping cases, but their mechanical kinematic cycles, footprint requirements, and gentle-handling characteristics differ significantly.

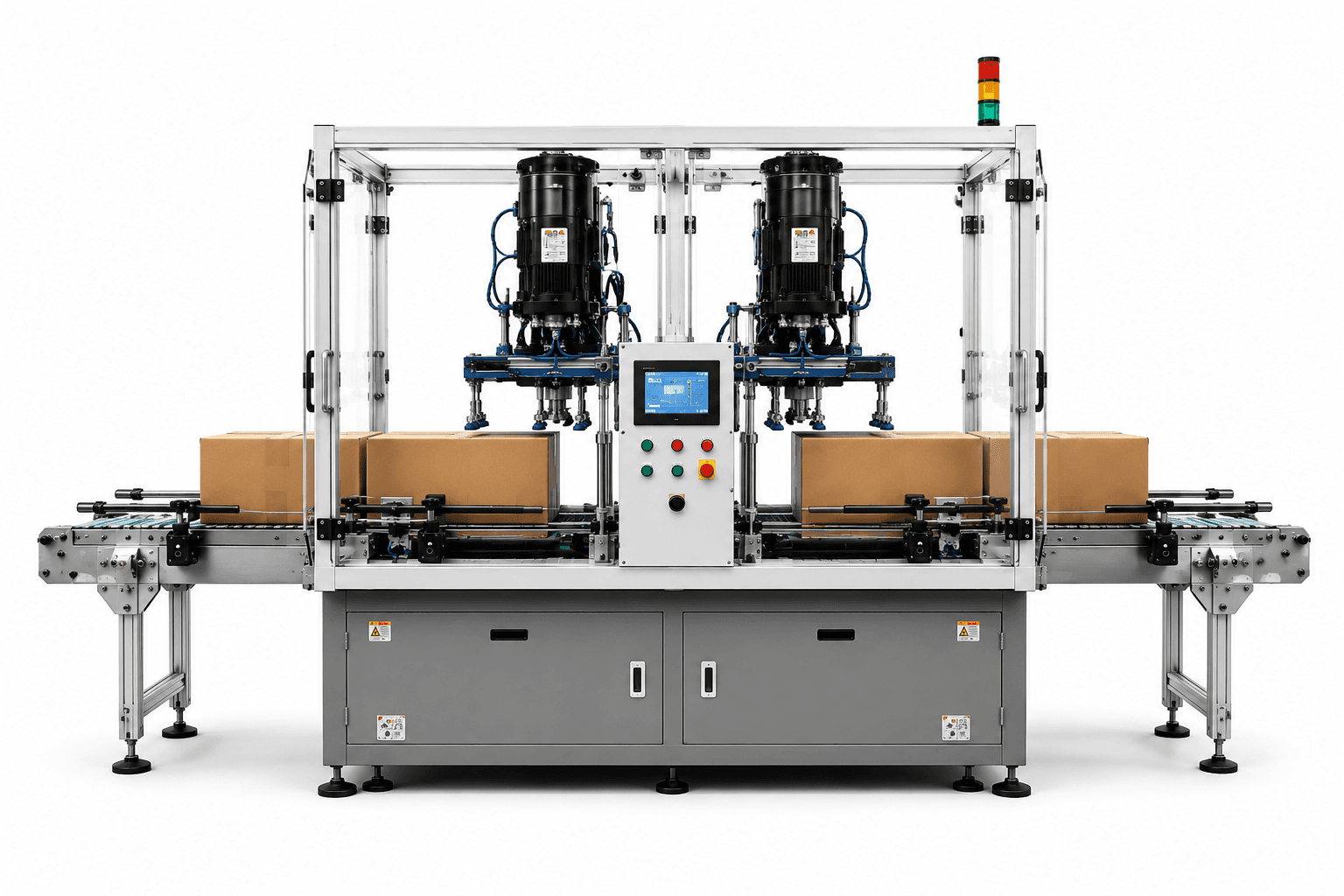

A top-load case packer, such as the OSTECH Pick and Place Case Packer Series, utilizes multi-axis servo or pneumatic gantry arms equipped with custom vacuum cups or mechanical matrix grippers. The machine collates incoming products into a predetermined layer pattern (e.g., 3x4 or 4x6 matrices), descends vertically over the containers, firmly grips the batch, elevates it, and gently lowers it into an erected corrugated shipper positioned directly underneath.
Top-load systems are the undisputed industry standard when packing:
In contrast, side-load case packers collate products horizontally on an infeed conveyor and use a pusher ram or sweep arm to slide the entire collation pattern horizontally through the open side flap of an end-load carton or RSC shipper. Side-load architectures are exceptionally fast for rigid rectangular cartons, tea boxes, and pharmaceuticals because horizontal mechanical movement minimizes vertical stroke distances and cycle times.
However, side-load machines are ill-suited for fragile liquid bottles or soft flexible pouches because the horizontal pushing friction against case walls can cause container crushing, pouch puncture, or label scuffing.
| Technical Parameter | Top-Load (Pick & Place) | Side-Load (Horizontal Pusher) |
|---|---|---|
| Product Compatibility | Bottles, flexible pouches, jars, cans, cartons | Rigid cartons, solid bricks, stackable cans |
| Container Stress & Scuffing | Zero sliding friction (Positive vertical lift) | Moderate to high horizontal pushing friction |
| Changeover Flexibility | Rapid gripper swap (< 15 mins for new SKUs) | Requires mechanical funnel adjustment |
| Typical Speeds | 15 – 30 cases/min (Twin Head Case Packer) | 20 – 40 cartons/min |
At our manufacturing facility in Vapi, Gujarat, OSTECH engineers high-throughput Single Head Case Packers and Twin Head Case Packers integrated with sanitary conveyor infeed networks. Our systems incorporate Siemens PLC controls, electronic torque limiters, and vacuum detection sensors to verify that every container is securely placed before the shipper moves to case taping and robotic palletizing.
Looking to automate your case packing operations? Contact OSTECH application engineers today to evaluate your container samples and receive a 3D line layout simulation.
